Single Photon Detection Systems
Single Quantum Eos, Eos R12 and Eos R48
Single Quantum develops and manufactures single photon detection systems based on the technology of superconducting nanowires. Their superconducting nanowire single photon detectors (SNSPD) include a closed-cycle cryostat which provides the low temperature environment for the superconducting nanowires. The high performance of their SNSPDs makes them the ideal choice for your most demanding applications. Single Quantum is recognized for the high quality and reliability of their detectors.
The detection principle is based on the transition of a nanowire from the superconductive to the resistive state upon the absorption of a single photon. The detectors are pigtailed with an optical fiber and operated in a closed-cycle cryostat at 2.5 Kelvin. The design enables continuous operation for up to 10,000 hours and requires no liquid helium consumption, thus a turn-key solution for optical measurements.
The system is designed for applications in quantum information technology, quantum communication and quantum cryptography, infrared time-resolved spectroscopy, laser ranging and remote sensing (LiDAR).
Models
Eos – Multi-Channel SNSPD Closed-Cycle System
Single Quantum's Eos consists of a compact closed-cycle cryostat, a dedicated helium compressor, fiber-coupled SNSPDs, a user-friendly electronic driver, and Single Quantum software. This multi-channel SNSPD system combines high time resolution, high detection efficiency, high count rate, and low dark count rate. It detects single photons with higher than 85% efficiency over a broad spectral range and an ultra-high timing resolution of less than 15 ps. A standard Single Quantum Eos has the capacity for 1 to 8 detection channels and each channel is optimized for a specific wavelength. The standard wavelengths are 800 nm, 900 nm, 1064 nm, 1310 nm, and 1550 nm.
Features
- Unparalleled system efficiency: >85%
- Low timing jitter: <15 ps
- High count rate: >80 MHz
- Low dark count rate: <10 Hz
- No helium consumption
- No afterpulsing
- Continuous operation: >10,000 hours
- Sensitivity from UV to mid-IR
- Gating not needed
- Long lifetime
- Upgradeable
Eos R12

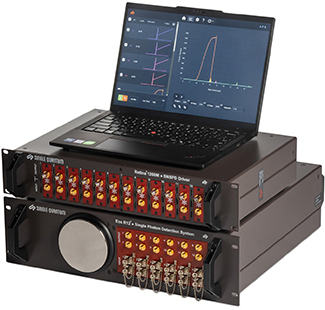

The Single Quantum Eos R12 is a compact, rack-mountable SNSPD system, featuring:
- Up to 12 detection channels
- Compact dimensions of 130 mm x 610 mm x 438 mm (H x D x W)
- 19" rack mountable (3U in height)
- NEW: Integrated vacuum pump available now!
The whole system, including the driver and the compressor, can be as compact as 11U, making it ideal for industrial applications such as quantum communication and cryptography.
Integrated Pump

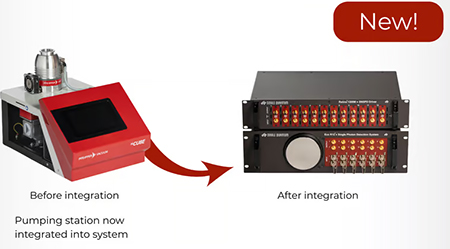

The upgraded Single Quantum Eos R12 with integrated pump delivers powerful new features in a compact, industrial-grade design without compromising on performance. Key features include:
- Integrated vacuum pump with fully automatic cooldown
- Remote system control for enhanced convenience
- Clean, rack-mounted setup – the size of the R12, the driver, and the vacuum pump combined is now just 5U
- Includes Retina driver electronics + vacuum pump in a streamlined package
- Engineered for demanding environments, ideal for quantum communication
Eos R48

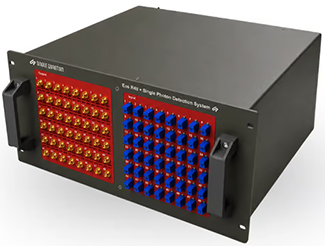

The Single Quantum Eos R48 is our new rack-mountable, multi-channel SNSPD system, featuring:
- Up to 48 detection channels
- 19" rack-mountable (5U in height)
- Compact solution for multi-channeled SNSPD
Ideal for all applications that require large scale single photon detection, combining scalability, efficiency, and cutting-edge performance all in just 5U.
