Convenient Operation

8600 Series VSM Overview

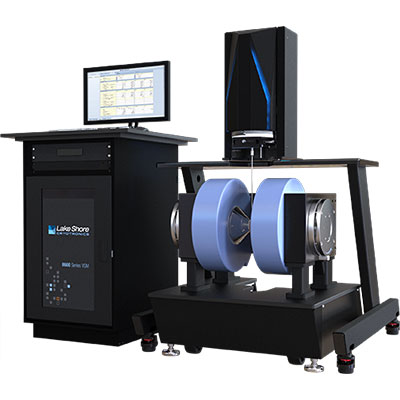

The entire 8600 Series system has been reimagined with a focus on clean, ergonomic design that simplifies the researcher's interaction with the system. A motorized head brings the sample to a comfortable height for easy, one-handed exchange of the QuickLIGN™ sample rods. Temperature options include a cryostat, high-temperature oven, and single-stage variable temperature insert. The combined temperature range of the options is 4.2 K to 1273 K. All three GlideLOCK™ options quickly slide into place and are auto-detected, with the software automatically displaying controls for the specific option. The magnet poles are also easily adjusted with the ExactGAP™ indexed positioning system that allows the pole gap to be set at one of six repeatable positions, eliminating the need to recalibrate after each change.

Designed for FORC

8600 Series VSM—Real-Time FORC Demo

This VSM was created with first-order reversal curve (FORC) measurement as a primary objective. FORC analysis is greatly enhanced by the high sensitivity of the 8600 Series vibrating sample magnetometer. FORC also benefits from increased data point density, and the new VSM flies through complex FORC data collection sequences in a fraction of the time required on previous systems. In addition, the system includes Real-Time FORC (RTForc™) software, which enables fully automated FORC data acquisition using the 8600 Series software.

Flexible and Adaptable

8600 Series VSM - Quick Look with Brad Dodrill

The system's software simplifies control of the VSM. Standard predefined measurement routines are combined with configurable field and measurement loops to provide a flexible data acquisition environment. In addition, the software features an integrated scripting tool, which enables the user to extend the existing routines with an open-ended software scripting language that can be used to perform customized measurement protocols and interface with third-party lab equipment.

Performance-Driven

Compare the 8600 Series with the 7400 Series vibrating sample magnetometer.

Features of the 8600 Series Vibrating Sample Magnetometer

• 0.15 × 10^-7 emu noise floor at 10 s/pt
• 10 ms/pt data acquisition rate
• 10,000 Oe/s field ramp rate
• Rapid, repeatable temperature option exchange
• High stability – ±0.05% per day
• Fields to 3.62 T
• Widest available temperature range – 4.2 K to 1273 K
• Includes fully automated FORC data acquisition software
• Kit available for integrating NanOsc room temperature 2 to 40 GHz FMR sample holder, sense coils, and instruments
