Lake Shore Cryotronics – Interchangable Rox™

Interchangable Rox™

Lake Shore Cryotronics

Ruthenium oxide temperature sensors are thick-film resistors, with most models suitable for use in applications involving magnetic fields. These composite sensors consist of bismuth ruthenate, ruthenium oxides, binders, and other compounds that allow them to obtain the necessary temperature and resistance characteristics. Each Lake Shore Rox™ model adheres to a single resistance versus temperature curve.

RX-102A

The RX-102A (1000 Ω at room temperature) is useful down to 50 mK and has better interchangeability than the RX-202A as well as low magnetic field induced errors below 1 K.

RX-102A Features

  • Standard curve interchangeable
  • Good radiation resistance
  • Useful down to 50 mK
  • Low magnetic field-induced errors

RX-202A

The RX-202A (2000 Ω at room temperature) has a 4× improvement in magnetic field-induced errors over other commercially available ruthenium oxide temperature sensors with similar resistances and sensitivities. Most ruthenium oxide sensors have a maximum useful temperature limit well below room temperature, where the sensitivity changes from negative to positive. The RX-202A however, is designed to have a monotonic response from 0.05 K up to 300 K.

RX-202A Features

  • Standard curve interchangeable
  • Good radiation resistance
  • Monotonic from 50 mK to 300 K
  • 4× improvement in magnetic field-induced errors over other ruthenium oxides

RX-103A

The RX-103A (10,000 Ω at room temperature) has a unique resistance and temperature response curve combined with low magnetic field induced errors, and is the best choice for interchangeability from 1.4 K to 40 K.

RX-103A Features

  • Standard curve interchangeable
  • Good radiation resistance
  • Best choice for interchangeability from 1.4 K to 40 K
  • Low magnetic field-induced errors

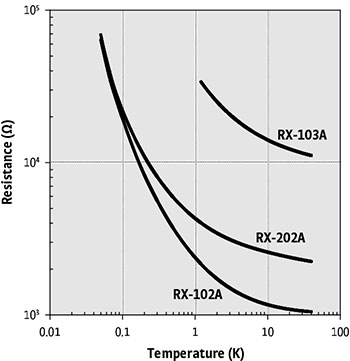

Typical Rox™
Resistance

Lake Shore Rox™ Typical Resistance

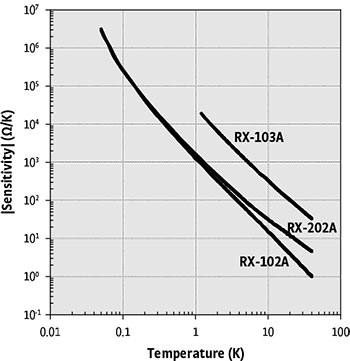

Typical Rox™
Sensitivity

Lake Shore Rox™ Typical Sensitivity

Typical Rox™
Dimensionless Sensitivity

Lake Shore Rox™ Typical Dimensionless Sensitivity
